When a seam tears open, a color fades off, or a zipper stops working, the first question is why. The second is where. Good traceability answers in seconds. A small QR near the seam, paired with thread IDs and trim IDs, gives you the who, when, and how of each garment. Returns shrink. Audits go faster. Teams learn faster. Here is a simple playbook you can copy.
What the QR should carry
Think of the QR as a short key, not a long story. The code points to data on your server. Inside the QR, you store only a compact token and a few fast facts.
Minimum fields to encode
- Product ID and size
- Color code
- Build version or BOM version
- Lot number for thread and trims
- Line or cell ID
- Date code and shift
Stored on the server after the scan
- Full thread spec by the seam family
- Trim the list with suppliers and lot certificates
- Machine class and needle size by station
- Operator code or team code
- Test results for that batch
Short in the code. Deep in the cloud. That keeps the QR small and easy to read on low end phones.
Where to place the QR
- Inside the side seam close to the care label. Protected, easy to scan, not scratchy.
- Pocket bag for pants or hood lining for jackets when a side seam is not possible.
- Keep it flat and away from heavy folds. A bent code is a slow code.
- Add a tiny text fallback under the QR, like ABC1234, so staff can type if a camera fails.
Thread and trim IDs that do the heavy lifting
Your QR is the front door. The IDs are the rooms inside. Give every consumable a simple, human-readable ID.
Thread ID format

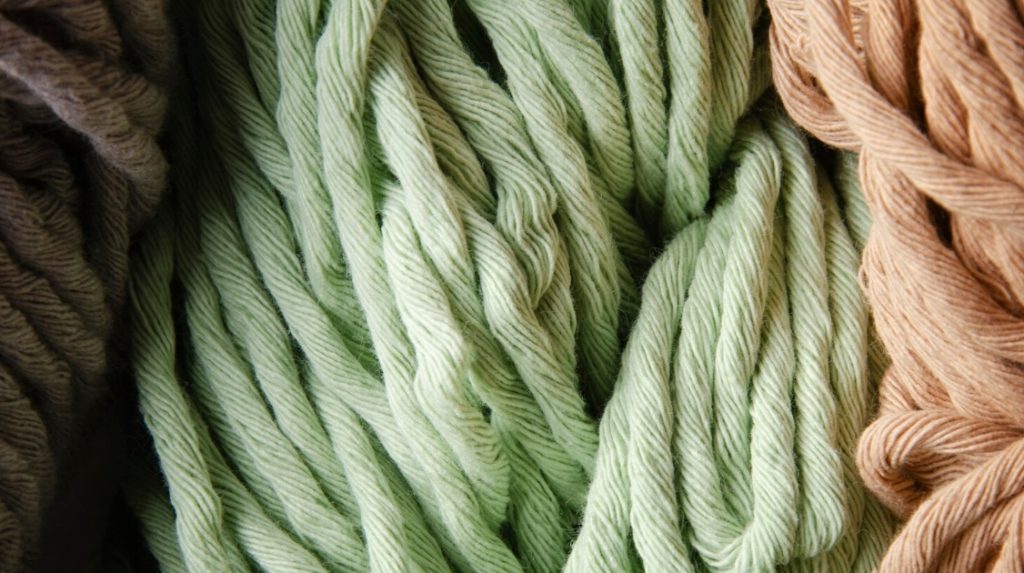

- Family code: PET for polyester (recycled polyester thread or polyester corespun thread), PA for nylon, CT for cotton
- Ticket size: T40 or T30
- Finish code: LF for low friction, AW for anti-wick
- Color code: LAB or shade code
- Lot number: numeric
Example: PET T40 LF BLK L0789
Trim ID format
- Type code: ZIP, SNAP, LABEL, TAPE
- Material family: PET, PA, POM, ALU
- Color code or finish
- Lot number
Example: ZIP PET BLK L5521
These IDs live in the BOM and on the tray or bag label. The line scans them at start, and the QR token links to this list.
How the line captures data without slowing down
- At the start of a lot, the supervisor scans cones and trim bags into the order on a simple phone app.
- The app knows which seam families use which threads and checks for mismatches.
- Each bundle gets a small bundle QR that references the same lot and build version.
- When the care label QR is printed, the app attaches the thread and trim IDs to that token. No extra typing.
What a scan shows in the store or DC
A staff member scans the QR. They see:
- Product picture and color
- Size and build version
- Thread map like: Side seam PET T40 LF BLK L0789 at 9 to 10 SPI
- Zipper info like: ZIP PET BLK L5521 supplier code ZP12
- Line ID, date, shift
- Green or amber flags for any supplier or test deviation
Green means sell or return to stock. Amber means escalate. Red means hold.
Small QR, strong privacy
- Put only a token plus a few non-sensitive codes in the QR.
- Do not store names or personal data inside the code.
- The server answers with the details after permission checks.
- Rotate tokens for new lots so screenshots do not leak future info.
Testing the system before launch
- Scan speed in poor light and on wrinkled fabric. Target a fast scan on a basic phone.
- Error rate for damaged labels. Check that the text fallback is readable and unique.
- Server load with a burst of scans. Peak at shift change or DC intake.
- Return drill. Give the service team five garments with different faults. How long they need to find the root cause?
Troubleshooting Tabular Representation
| Problem | Possible cause | Fast fix |
| QR scans slow or fails | Curved or glossy placement | Move to a flat seam area, use matte label stock |
| Wrong thread shown | Line used, substitute not scanned | Add start of lot scan gate, block sewing until scan complete |
| Too many returns from one day | Line setup drift | Use QR analytics to flag SPI drift and needle mismatch at that line |
| Customers see supplier names | Data view not filtered | Show only product facts in the customer view and hide suppliers |
| Codes rub off after washing | Ink or ribbon is not durable | Switch to wash wash-durable label and test 30 home washes |
A simple data schema you can copy
QR payload
- pid: GTJ-014
- size: M
- col: BLK-01
- ver: B3
- lot: L0789
- line: L7
- date: 2025 11 10
- token: 6B2KQ9
Server record
- thread_map:
- side seam: PET T40 LF BLK L0789 SPI 9 to 10 needle micro 80
- hem cover: PET T120 LF BLK L0789 needle ELx705 70
- trims:
- ZIP PET BLK L5521 supplier ZP12
- LABEL PET WHT L3334 supplier LB02
- tests: seam slippage pass, shade delta pass
- operator_team: T14
- notes: none
One-week pilot plan
Day 1 to 2: pick one style and two colors. Define thread and trim IDs.
Day 3: add side seam QR and text fallback to the care label.
Day 4: train one line on the start of lot scans.
Day 5: sew 200 units. Scan 30 at random.
Day 6: Simulate three returns. Use scans to find the root cause.
Day 7: fix any gaps and roll to a second style.
Tech pack lines you can copy
- QR location inside the left side seam above the care label.
- Content token plus pid, col, size, ver, lot, line, date.
- Thread IDs recorded by the seam family and SPI window.
- Trim IDs recorded with supplier codes and lot numbers.
- Start of lot scan required before sewing.
- Customer scan shows product facts only.
- Internal view shows the full materials list and test results.
Wrap
QR at the seam is a small label with a big job. Pair it with clear thread IDs and trim IDs, and you turn returns into answers. Problems trace to a line, a lot, a setting, or a supplier in seconds. That saves cost, lifts trust, and teaches your team where to improve next time.
